pvc marble sheet production line
The production line can be named as:
pvc marble tile production line
pvc marble sheet calendaring machine
pvc marble sheet production line is used for producing decoration sheet. By changing the surface hot stamping films, we can produce verities of sheets, such as marble imitation, wood grain imitation, etc. Such decoration sheets are low cost, beautiful and long life. By painting UV on the surface, the sheet looks bright, and with big surface hardness, which makes it long life. And the board is popular on the wall in the hospital, school, home, office buildings, shopping malls, supermarkets, and other public places.
pvc marble sheet production line includes
| Machine name | Weight (kg) | Quantity |
| Automatic feeding machine | 100 | 1 |
| SJSZ80 Double screw extruder | 5000 | 1 |
| mould | 1500 | 1 |
| three-roller calender machine | 5000 | 1 |
| Cooling shaft | 200 | 1 |
| Edge cutting device | 50 | 2 |
| Haul-off machine | 500 | 1 |
| Chipless cutting machine | 800 | 1 |
| Roller stacker | 300 | 1 |
| Automatic mechanical arm | 350 | 1 |
Features of rollrt forming machine:
1.Double screw feeding machine with stirring device (which makes feeding speed much more stable)
2.High torque gear box (which makes it energy saving)
3.Screw and barrel are specially selected by the final plastic products (to ensure good plasticizing effects for different raw materials)
4.The two-roller haul off machine with cylinders to control the above rollers up and down motion (which makes it safe and easy for operators)

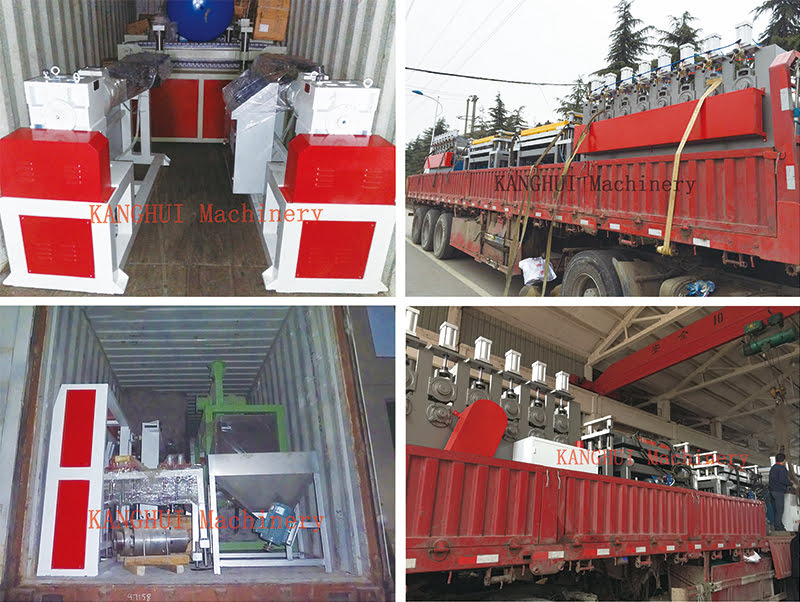

Machinery delivery
