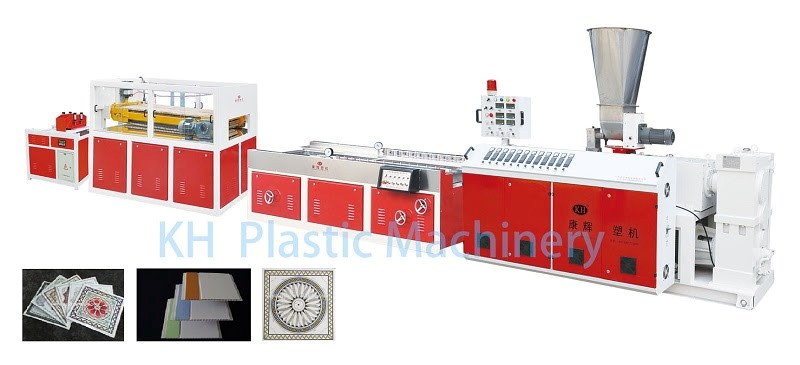

pvc ceiling production line
The production line can be named as:
pvc ceiling board production linr
pvc ceiling and wall panel production line
pvc ceiling panel production line uses pvc resin, calcium powder and chemical compound, after mixing the raw material, plastify raw material into extruder, then in the mould, make the surface hot stamping.
Most pvc ceiling panels are square 200*200mm, square 300*300mm, square 595*595mm, square 600*600mm, square 602*602mm, square 603*603mm as customers' needs.
By changing lamination or hot stamping films, the surface colors can be a lot. The production line can be also used for producing pvc decorative wall panel for bath room, kitchen roof and wall decoration as well.
By add color sensor on the cutting machine, we can cut the ceilings into standard square shape.
pvc Ceiling Extrusion processing steps:
Spiral feeding machine, Plastic Mixing machine, Spring feeding machine, Conical twin screw extruder, Mould, Calibration table, haul off machine, online hot stamping machine, cutting machine, Stacker
Machine list
| Machine name | Weight (kg) | Quantity |
| Automatic feeding machine | 100 | 1 |
| SJSZ65/132 extruder | 3500 | 1 |
| Mould Die | - | Several |
| Vacuum calibration table | 800 | 1 |
| Haul off machine | 800 | 1 |
| Online hot stamping machine | 300 | 1 |
| Cutting machine | 100 | 1 |
| Automatic stacker | 150 | 1 |
Attending exhibitions
Photo with customers

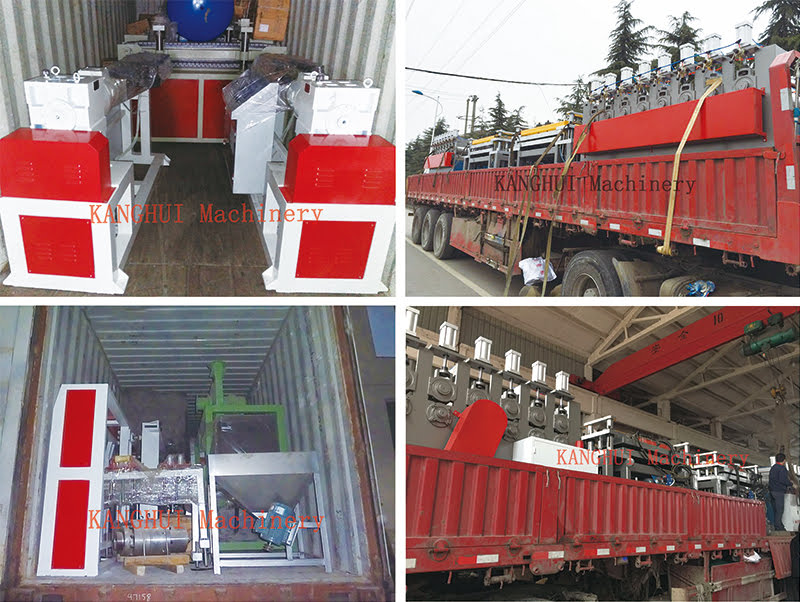

Machinery delivery
