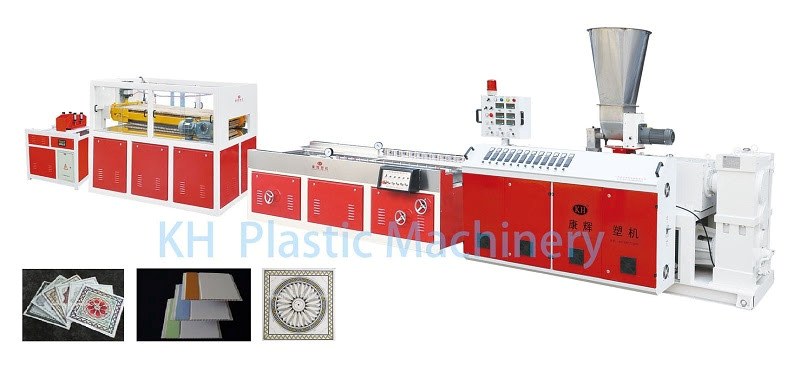

hot stamping pvc ceiling production line
It can also be named as:
pvc ceiling panel production line
pvc wall and ceiling panel production line
The hot stamping pvc ceiling production line uses pvc, calcium, chemical compound, hot staming film and hot stamping glue, after extrusion, cooling and hot stamping, customers can make pvc ceiling.
Processing:
Raw material mixing→ Screw feeder → Extruder → Mould → Vacuum forming table→Hot stamping machine →Haul-off machine→ Cutting machine → Stacker
Sizes of pvc ceiling:
Width of pvc ceiling panels are 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 595mm, 603mm.
Other utilities:
If customers uses lamination film on the production line, the pvc ceiling production production line can produce pvc wall panel too. We have color sensor on the cutter, our machine can produce square pvc ceiling as well, such as 595mm*595mm, 602mm*602mm, 603mm*603mm.
Machine list
| Machine name | Weight (kg) | Quantity |
| Automatic feeding machine | 100 | 1 |
| SJSZ55/125 extruder | 2800 | 1 |
| Mould Die | 200 | 1 |
| Vacuum calibration bench | 800 | 1 |
| Haul off machine | 800 | 1 |
| Hot stamping machine | 300 | 1 |
| Cutting machine | 100 | 1 |
| Automatic stacker | 150 | 1 |
Attending exhibitions
Photo with customers

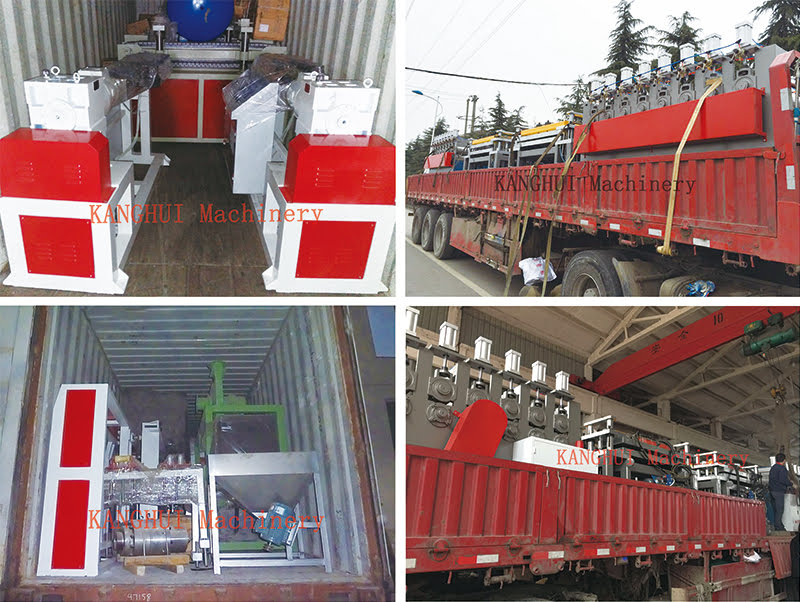

Machinery delivery
